Galaincha for Tufted Rugs

SIZE AND RESOLUTION

• Always set the resolution first while working on design in Galaincha. For tufted rugs, it is recommended to set the same resolution value for width and height.

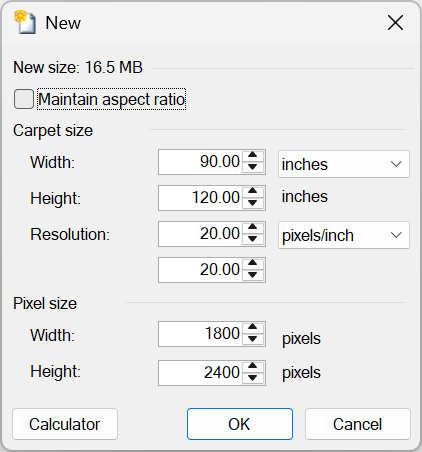

• As for the standard resolution, 10/10 knots per inch is appropriate but for the higher quality, resolution can be set not exceeding 20/20 knots per inch.

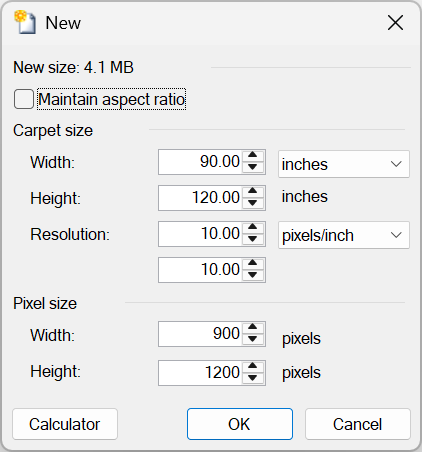

• Go to Image->Resize and set the proper size and resolution.



• Depending upon on the tufting density, the typical values are as follows:
  Low density: 6 knots/lines per inch
  Medium: 8 knots/lines per inch
  High: 10 knots/lines per inch
• For Tufted designs, size of carpet is more significant than the resolution.

VISUALIZATION AND TEXTURE

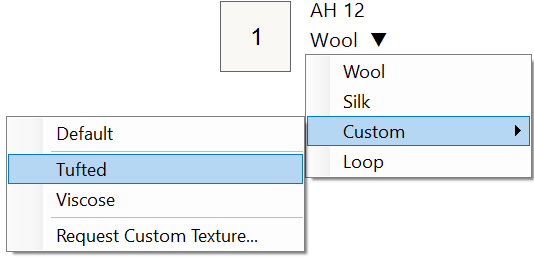

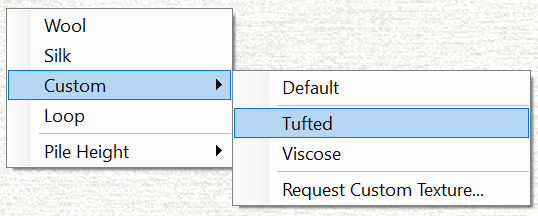

• For assigning tufted texture on the CarpeTools->Visualization window, select the Custom texture and assign Tufted texture.

         or

• If additional tufted texture is needed, you need to send us a good-quality, upright photograph of a plain rug woven in your desired textures, with a visible carpet area of at least 2 ft. x 2 ft. Please follow the tutorial link given below that suggest what to follow for requesting custom texture:
  https://galaincha.com.np/help/CustomTexture/

GRAPH

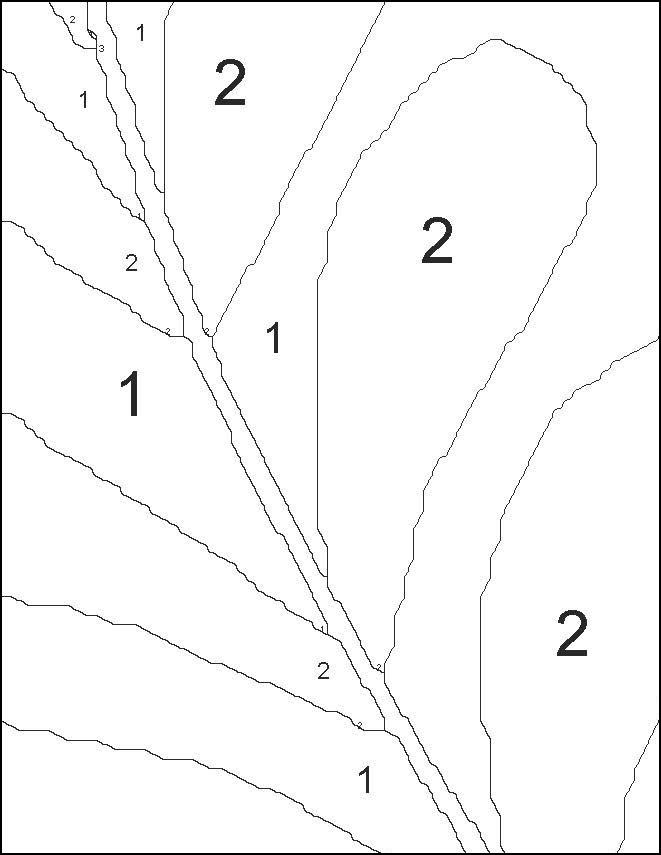

• For printing graph for tufted carpets, always select the option Print Outlines in File->Print Graph.



MATERIAL ESTIMATE

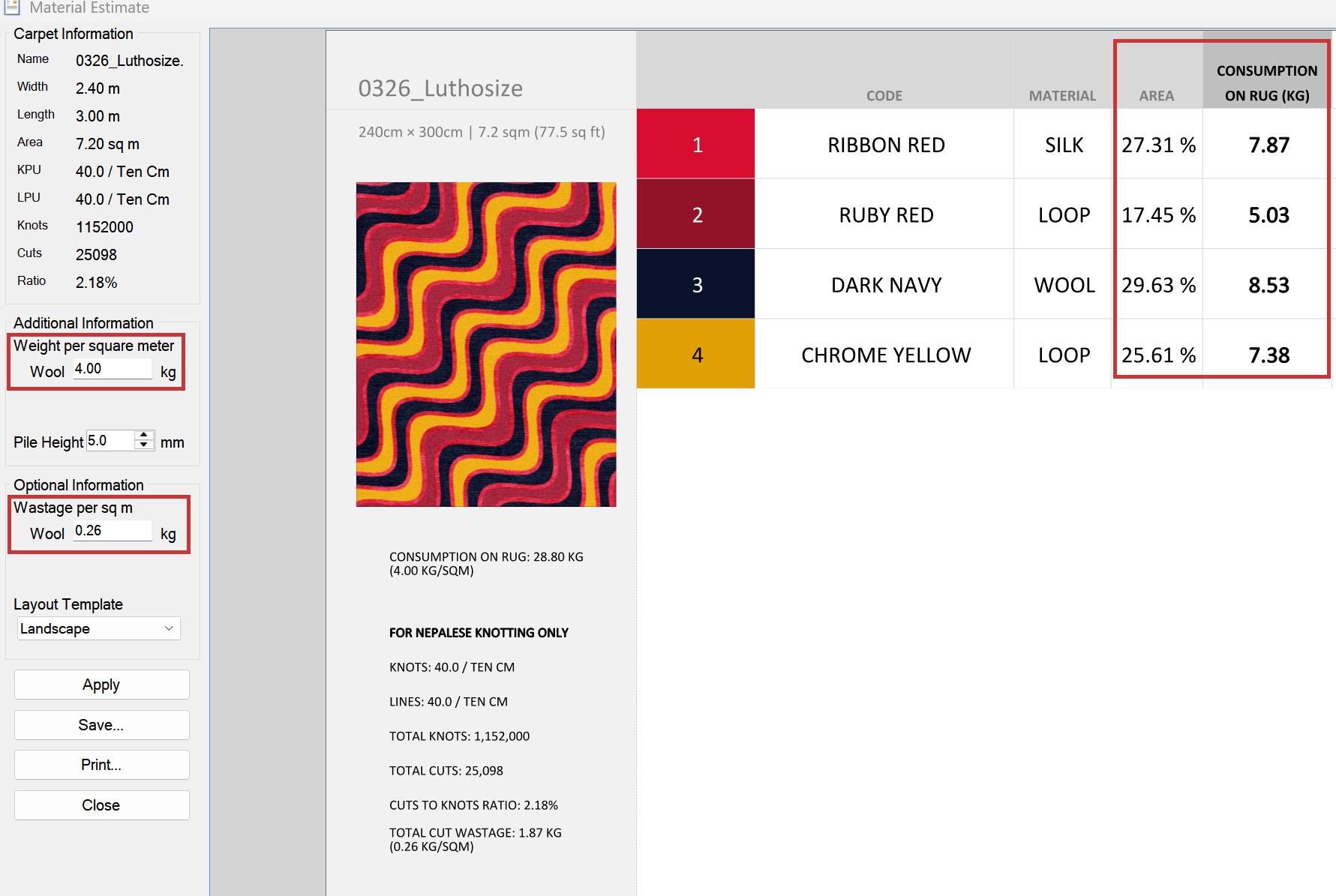

CarpeTools->Material Estimate is applicable for handtufted carpets as well. The 'Area' and 'Consumption on Rug' column can be referred. Depending on the yarn type, you can also set the weight per square meter and wastage per square meter for estimation.
